The use of smart relays (some products are also called "modules") allows you to use ordinary switches, so the selection of switch appearance is more flexible. However, because this adds an extra device to the circuit, the difficulty of maintenance may increase, and it also tests the reserved space in the electrical box or switch embedded box.
Smart Lighting Control Circuit Wiring Guide
If you haven’t watched EP 1 “Understanding Traditional Lighting Control Circuits” yet, I strongly recommend that you go back and watch it first so that you can have a complete understanding and not just have a superficial understanding!
You can also quickly jump to any section you need from the list below:
- EP 1 Understanding Traditional Lighting Control Circuits
- EP 2 [Zero Fire] Smart switch lighting control circuit
- EP 3 [Single Fire] Smart Switch Light Control Circuit
- EP 4 Smart relay lighting control circuit
🚨 Wiring work is somewhat dangerous, be sure to cut off the power supply before work! If you are not sure, please seek help from a professional plumber!
Although the operating concepts of smart relays are similar, the hole designs of different brands vary greatly. Therefore, we will select several major brands and introduce a smart relay suitable for lighting control. You can find the product that suits you from the case below.
Products such as smart relays are particularly suitable for placement near the ceiling octagonal box because most of them involve wiring changes. Therefore, the following example uses placement on the ceiling as an example. If you want to place it in a switch box, that is also possible, but remember to pay attention to the space inside the switch box.
Table of contents
Aqara T2 Dual-channel Module Controller Zero Fire Edition
Aqara T2 two-way module supports dry contact, wet contact, etc. Various wiring modes are supported. Here is a demonstration of the wet contact mode suitable for general lighting control. If you have other special needs, you can also check it out.Official InstructionsLook at other connections.

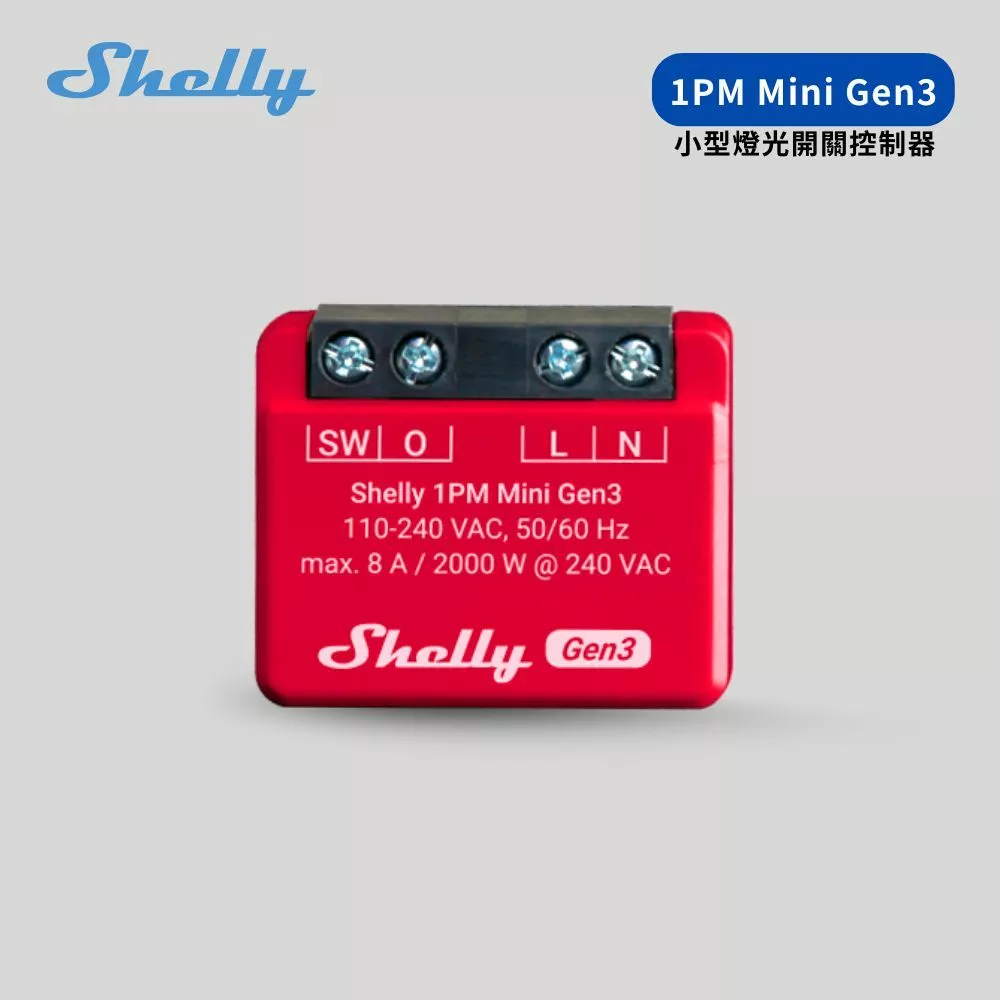

Shelly 1PM Mini Gen3
Shelly's products are quite diverse. Different products can correspond to different situations, and there are many products that can be used for lighting control. Here we will demonstrate the relatively simple 1PM Mini.
ℹ️ You can basically cut as many as you want under the ceiling. If you don't know how to connect it, you can look back.EP 0 Understanding Traditional Lighting Control Circuits".
SONOFF ZBMINIR2
ℹ️ You can basically cut as many as you want under the ceiling. If you don't know how to connect it, you can look back.EP 0 Understanding Traditional Lighting Control Circuits".
The above is the wiring method of the lighting control circuit of the smart relay! The ones recommended above are all zero-live versions, because since relays are used, it should be relatively easy to get the neutral line on the ceiling, so I will not recommend single-live relays here~
